Machine Details

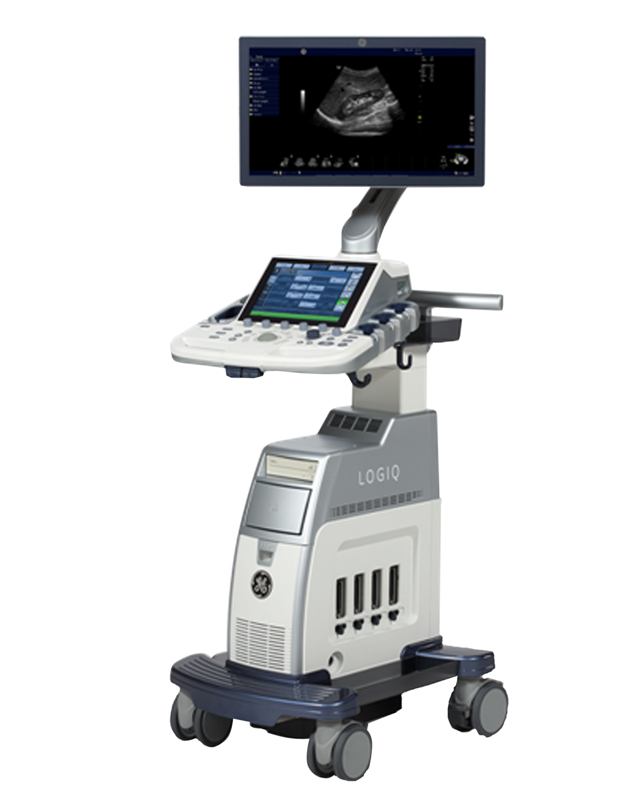

GE Logiq P7 Ultrasound Machine

The GE Logiq P7 is a midrange ultrasound that can replace the position of Logiq P5. GE introduced Logiq P7 as a full featured, multi purpose diagnostic ultrasound. GE Logiq P7 share the same hardware and software architectures of Logiq P9 except some of advanced features such as coded contrast imaging and a couple of high perfomable transducers.

  • Brand:
  • Share:
  • Specification
  • Features
  • transducers
  • System Overview

    Year Launched 2016
    Estimated Market Price ($) Midrange
    Monitor (inch) 21.5" wide screen LCD
    Tilt/Rotate Adjustable Monitor Fully articulation arm
    Monitor Resolution
    Image Size Resolution
    Touch Screen (Inch) 10.4" wide LCD
    Trackball or Trackpad Trackball
    CP Back-Lighting Yes
    Weight 132lbs(60Kg)
    Probe Ports 3(4th port option)
    Battery Yes
    Boot-Up Time
    Sleep Mode (Quick Start)
    Power Accistant(Battery)
    Maximum Depth of Field 33cm
    Minimum Depth of Field 0-1cm
    Cart (HCU) No
    Independent Steer & Lockable Wheels Yes

  • Connectivity

  • Features

    Tissue Harmonic Imaging Yes
    Spatial Compounding(=CrossXbeam) Yes
    Speckle Reduction (=SRI) Yes
    Auto Image Opt(B mode) Yes
    Auto Image Opt(Doppler) Yes
    Write Zoom Yes
    Triplex Mode Yes
    Needle Enhancement or Needle Recognition No
    Auto NT Measurement (=Sono NT) No
    Auto Follicle 2D Measurement No
    Auto Follicle 3D Measurement No
    Auto IMT Yes
    Auto IMT (Real Time) No
    Automated B/M/D Measurement No
    Automated LH Measurement(Automated Function Imaging(AFI), Cardiac Motion Quantification(CMQ), or Auto EF(Ejection Fraction) Yes(Auto EF)
    Live Dual (B/BC) Mode Yes
    SmartExam or Scan Assistant Yes(Scan Assistant)
    Fusion No
    Raw Data File Yes
    Flexible Report Yes
    Barcode Reader No
    Gel Warmer Yes

  • Transducers
