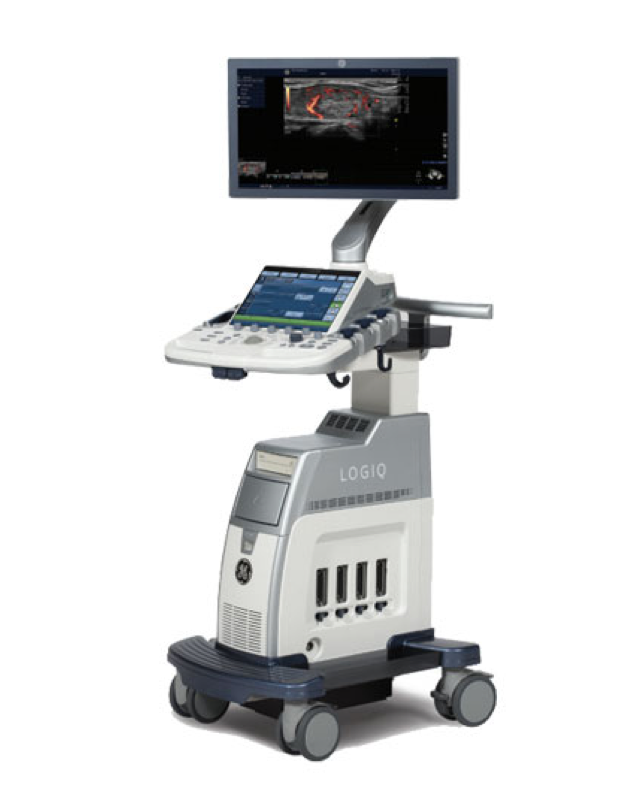

GE Logiq P9 Ultrasound Machine

The GE Logiq P9 is a mid-end, but truly feature-riched multi purpose diagnostic ultrasound system that covers wide range of applications with high-end options and perormance proven transducers.

  • Brand:
  • Share:
  • Specification
  • Features
  • transducers
  • System Overview

    Year Launched 2016
    Estimated Market Price ($) Midrange
    Monitor (inch) 21.5" wide screen LCD
    Tilt/Rotate Adjustable Monitor Fully articulation arm
    Monitor Resolution
    Image Size Resolution
    Touch Screen (Inch) 10.4" wide LCD
    Trackball or Trackpad Trackball
    CP Back-Lighting Yes
    Weight 132 lbs (60Kg)
    Probe Ports 3 (4th port option)
    Battery Yes
    Boot-Up Time Sleep Mode (Quick Start)
    Power Assistant(Battery)
    Maximum Depth of Field 33cm
    Minimum Depth of Field 0-1cm
    Cart (HCU) No
    Independent Steer & Lockable Wheels Yes

  • Connectivity

  • Features

    Tissue Harmonic Imaging Yes
    Spatial Compounding(=CrossXbeam) Yes
    Speckle Reduction (=SRI) Yes
    Auto Image Opt(B mode) Yes
    Auto Image Opt(Doppler) Yes
    Write Zoom Yes
    Triplex Mode Yes
    Needle Enhancement or Needle Recognition No
    Auto NT Measurement (=Sono NT) No
    Auto Follicle 2D Measurement No
    Auto Follicle 3D Measurement No
    Auto IMT Yes
    Auto IMT (Real Time) No
    Automated B/M/D Measurement No
    Automated LH Measurement(Automated Function Imaging(AFI), Cardiac Motion Quantification(CMQ), or Auto EF(Ejection Fraction) Yes(Auto EF)
    Live Dual (B/BC) Mode Yes
    SmartExam or Scan Assistant Yes(Scan Assistant)
    Fusion No
    Raw Data File Yes
    Flexible Report Yes
    Barcode Reader No
    Gel Warmer Yes

  • Transducers

    Convex (1~6Mhz)
    Micro Convex (5~8Mhz)
    Endocavity_Curved Type (5~8Mhz)
    3D Convex (2~6Mhz)
    Linear (>14Mhz)
    Linear (3~12Mhz)
    Linear (<9Mhz)
    T or L shape Intra Operative
    Phased Array_Adult (1~5Mhz)
    Phased Array_Pediatric (3~8hz)
    Pencil CW (5 or 6Mhz)
